TPACKETv3 Virtual Patch (multi-thread)

A demonstation of a virtual patch between two nodes.

  • GitHub Link: https://github.com/packetcord/packetcord.io/tree/main/apps/l2_tpacketv3_patch_workers
  • Topology File: topology_examples/l2_patch.json

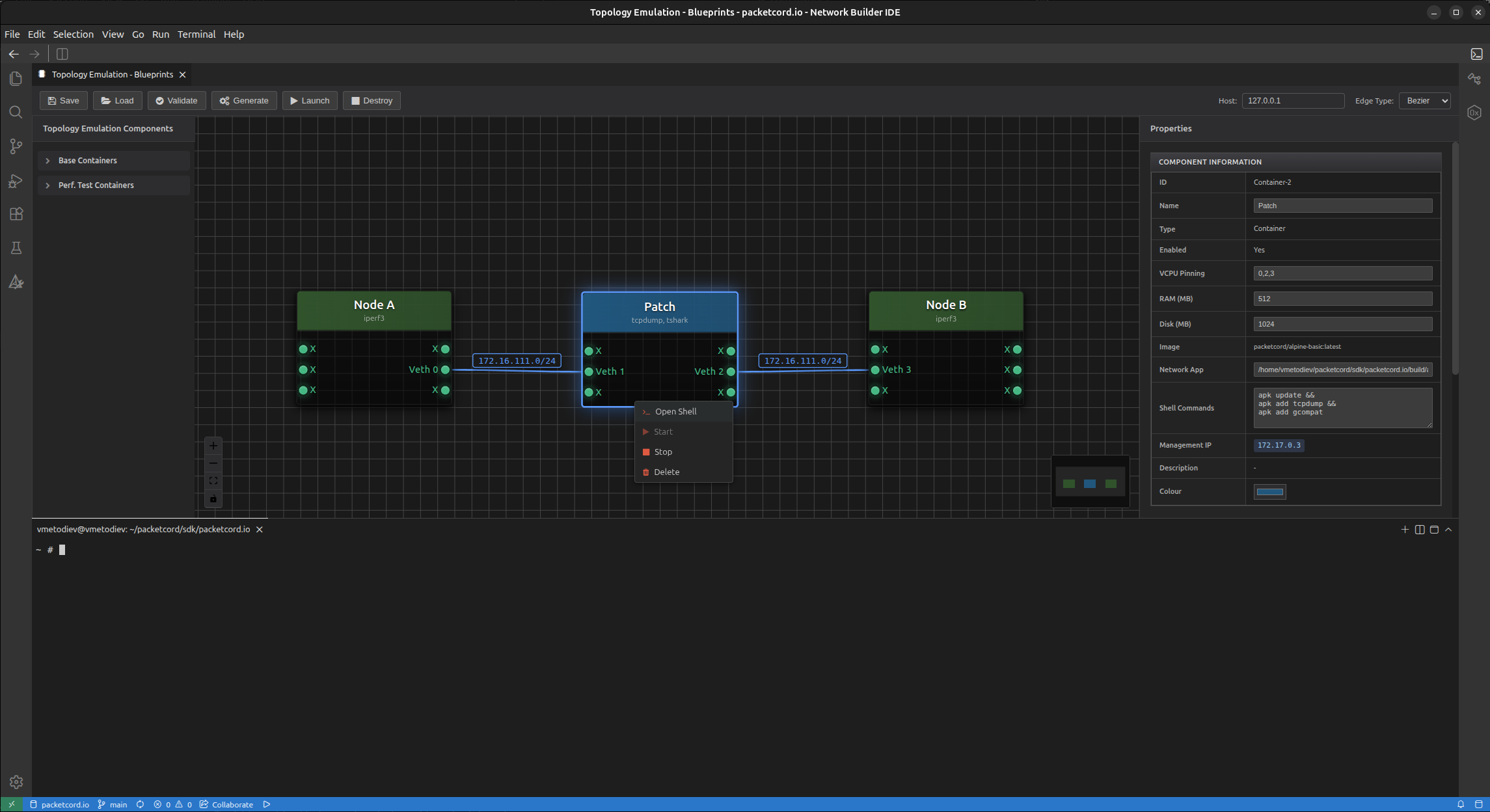

Topology diagram

TOP

Steps

Build the project (all examples)

cd packetcord.io
mkdir build
cd build
cmake .. --fresh
make

Start the topology

Load the exampe topology project file.

Then, left click on the Patch container. Inside the Properties panel, set the Network App field to point to the location of the app: /home/ubuntu/packetcord/sdk/packetcord.io/build/apps/l2_tpacketv3_patch_workers/l2_tpacketv3_patch_workers_app

Save the file (overwrite or select new filename and/or new location), Validate, Generate and Launch the topology and open the container shell.

TOP

Inside the container, run the following commands:

cd /root
./l2_tpacketv3_patch_workers_app

Result

Open the shells of Node A and Node B. Try to ping each other (172.16.111.1 and 172.16.111.2).

PING 172.16.111.1 (172.16.111.1): 56 data bytes
64 bytes from 172.16.111.1: seq=0 ttl=64 time=2.667 ms
64 bytes from 172.16.111.1: seq=1 ttl=64 time=3.640 ms
64 bytes from 172.16.111.1: seq=2 ttl=64 time=3.618 ms
64 bytes from 172.16.111.1: seq=3 ttl=64 time=2.596 ms

Let's also run iperf3 between Node A (server) and Node B (client):

On Node A

iperf3 -s

On Node B

iperf3 -c 172.16.111.1

Connecting to host 172.16.111.1, port 5201
[  5] local 172.16.111.2 port 56878 connected to 172.16.111.1 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   566 MBytes  4.74 Gbits/sec    0   3.83 MBytes
[  5]   1.00-2.00   sec   712 MBytes  5.98 Gbits/sec    0   3.83 MBytes
[  5]   2.00-3.00   sec   706 MBytes  5.92 Gbits/sec    0   3.83 MBytes
[  5]   3.00-4.00   sec   707 MBytes  5.93 Gbits/sec    0   3.83 MBytes
[  5]   4.00-5.00   sec   710 MBytes  5.95 Gbits/sec    0   3.83 MBytes
[  5]   5.00-6.00   sec   712 MBytes  5.97 Gbits/sec    0   3.83 MBytes
[  5]   6.00-7.00   sec   711 MBytes  5.97 Gbits/sec    0   3.83 MBytes
[  5]   7.00-8.00   sec   696 MBytes  5.85 Gbits/sec    0   3.83 MBytes
[  5]   8.00-9.00   sec   724 MBytes  6.07 Gbits/sec    0   3.83 MBytes
[  5]   9.00-10.00  sec   694 MBytes  5.82 Gbits/sec    0   3.83 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  6.78 GBytes  5.82 Gbits/sec    0            sender
[  5]   0.00-10.01  sec  6.78 GBytes  5.82 Gbits/sec                 receiver

Terminate

Use the Destroy button to terminate the emulation.
